- Bracket System only - for U.P.G. RB upgraded alternator

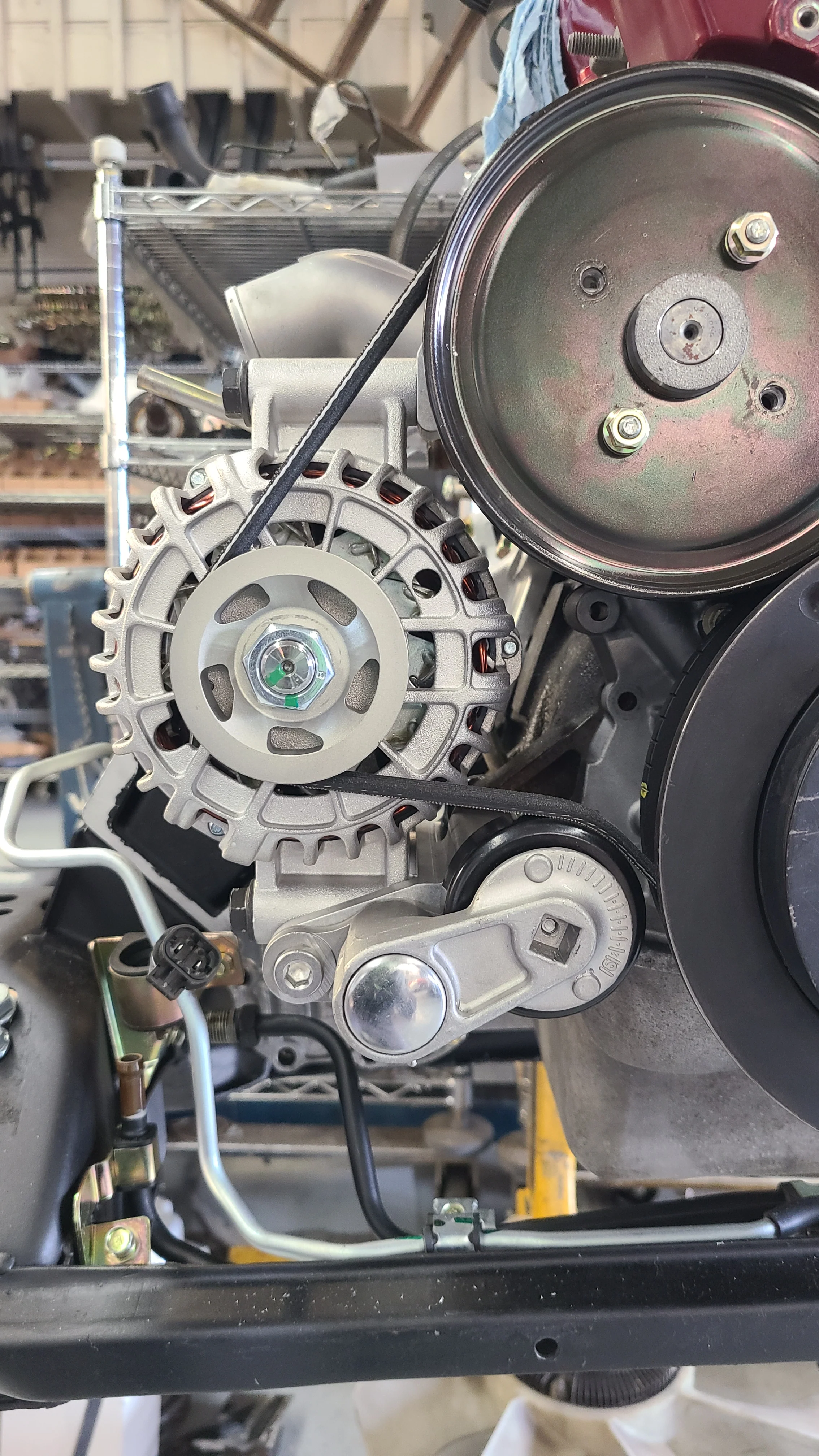

We have designed an alternator kit in house. We have thrown out the standard ways of mounting and tensioning.Ā We have done exhaustive testing and we feel we have come up with the next big thing in alternator upgrades for the RB engine.
Our alternator "bracket system only" will come with the following.
- Brackets (upper and lower)
- Mounting hardware
- Tensioner
- Pulley
- Jumper harness
These units have been tested to fit our bracket system.Ā
- 110amp STD control OE Ford #1L8Z-10346-CARM
- 135amp PWM control OE Ford #XF2Z-10346-BARM
- 195amp PWM control ACDELCOĀ 3343114Ā
Ā
*****COLOR CODING FOR THE HARDWARE******
- RED x1 upper alternator to upper bracketĀ
- YELLOW x2 upper bracket to water pump
- BLUE X2 lower alternator to lower bracketĀ

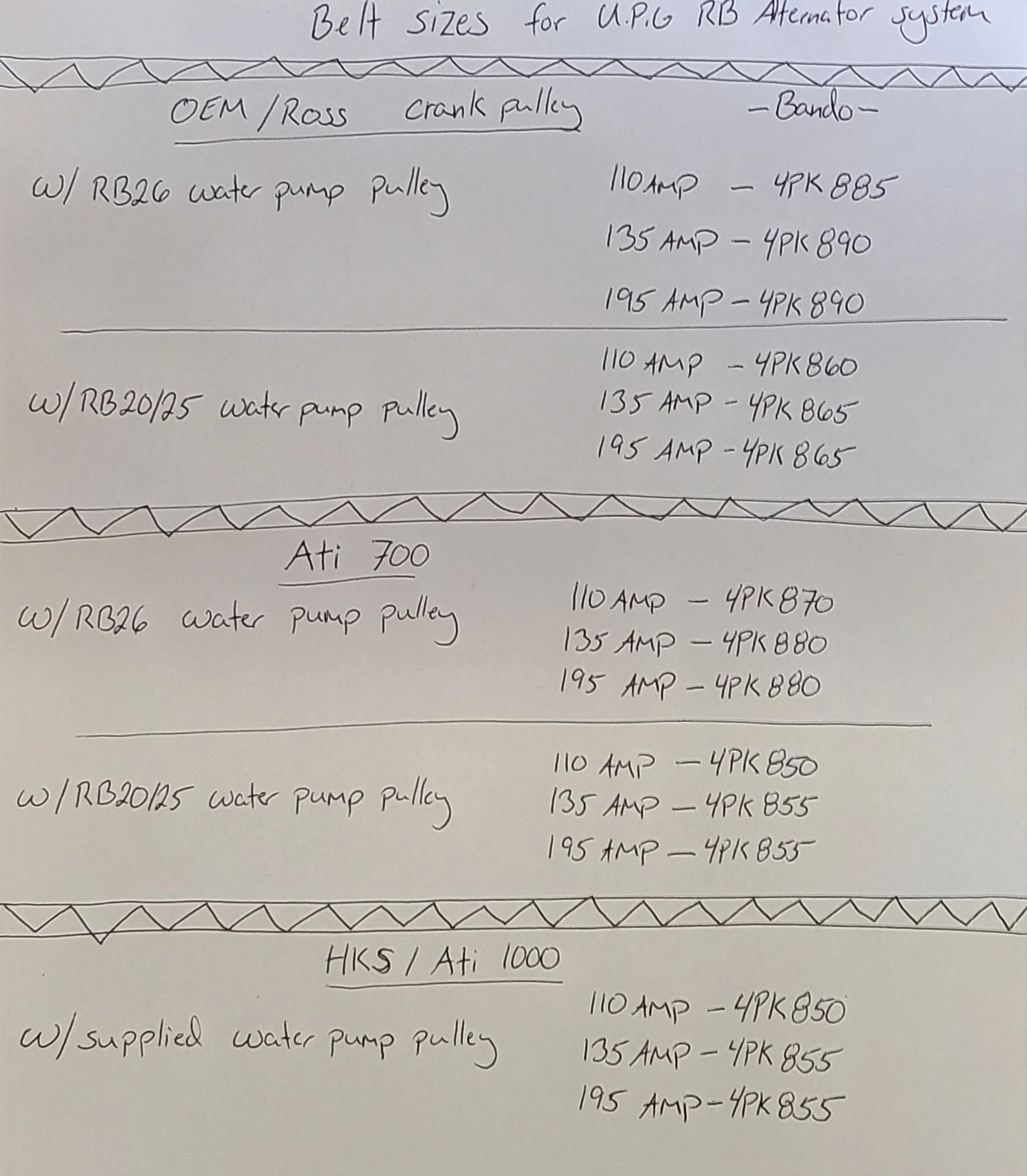

******Check picture for belt size recommendations******
