■ Conformity / installation information

Engine model	RB26DETT
Model year	89/08 --94/12
remarks	Standard car

■ Specifications

	FRONT	REAR
Damping force adjustment	30 steps	30 steps
Base valve	---	---
Full length adjustment	○	○
Upper mount	Rubber	Rubber
Inverted / upright	Upright	Upright
Damper / spring configuration	Integrated	Integrated
Factory spring rate change	Yes	Yes
Damping force adjustment with wire	---	○
Helper spring (spring rate N / mm)	○ (19.8)	○ (19.8)

■ Vehicle height informationmm

		At the time of shipment * 2	At the time of test	Maximum upper limit to maximum lower limit * 3	Upper limit of travelability-Lower limit of travelability * 4
FRONT	Vehicle height * 1	656	←	695-627	695-629
FRONT	Normal ratio	-39	←	0 to -68	0 to -66
REAR	Vehicle height * 1	656	←	671 ~ 608	671 ~ 608
REAR	Normal ratio	-15	←	0 to -63	0 to -63

* 1. Height from the road surface to the fender arch.
* 2. The vehicle height at the time of shipment is reference measurement value data based on the combination of full kit settings within HKS. (This is our recommended vehicle height.)
* 3. Adjustable range (However, please note that driving at the lower limit in this case is out of compliance with safety standards.
Also, even if it is within this adjustment range, the vehicle Depending on the height, it may interfere with the body, arm, etc. and hinder driving. In
addition, we guarantee against problems such as damper oil leakage due to use with the vehicle height extremely lowered from the factory height . Please note that it is not applicable.)
* 4. The range in which the vehicle can run without interference with the body, arm, etc. (However, this does not apply depending on changes in tire and wheel sizes, etc.)
Note). Data will change depending on individual differences and assembly conditions of the vehicle.

■ Kit information

● Full kit setting spring

	F	R
Spring rate N / mm (kgf / mm)	98 (10)	78 (8)
Free length (mm)	200	220
Spring type	Series winding	Series-wound barrel type
Recommended range when changing spring rate N / mm (kgf / mm)	± 20 (2)	± 20 (2)

● Damper spec

	F	R
Damping force (extension side / contraction side) N *	1515/456	652/348
Factory dial position	15	15
Damper remaining stroke (extension side / contraction side) mm	43/56	62/74

* The damping force value is the value when the piston speed is 0.1 m / sec.

● Setting data

	F				R
	At the time of shipment	At the time of test	Maximum travel capacity *	Lower limit of travel *	At the time of shipment	At the time of test	Maximum travel capacity *	Lower limit of travel *
Case length (mm)	279	←	316	270	410	←	424	377
Spring set length (mm)	237	←	236	255	287	←	←	297
Winding dimension (mm)	29	←	67	2	43	←	57 57	0
Lever ratio	1.03				1.12

* For the upper limit and lower limit of driving, please refer to the above: Margin of vehicle height information * 3.

■ Test vehicle information

		F	R
Vehicle weight (catalog value) kg		---	---
Tire size (pneumatic) kPa		235/40 --18 (230)	235/40 --18 (230)
Wheel size		9 JJ x 18 inset 22	9 JJ x 18 inset 22
Alignment (toe / camber)	At the time of test	out 1 mm / -2 ° 00'	in 0 mm / -2 ° 33'
Alignment (toe / camber)	Reference value	0 ~ in 2 mm / -0 ° 55'± 45'	in 2 ± 2 mm / -1 ° 05'± 30'

* Measured by our company.

■ Configuration diagram　 * Subject to change due to specification changes.

■ Point

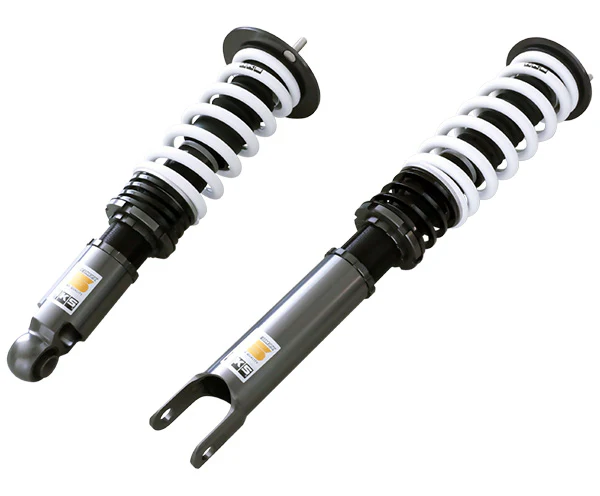

The MAX S for BNR32, which has evolved further from 20SPEC, has been set.
We pursued driving with a sense of unity with the driver by further improving the hardness and connection feeling of the valve that feels the damping transient.
By optimizing the size of the PVS, we controlled the damping curve exceeding 20 SPEC.
The color has been changed to gunmetal in line with the renewal, and the chamfering process of the upper plate has been added to further improve the aesthetic appearance.

● Processing at the time of installation
Hole processing (rear interior) for the rear damping force adjustment dial is required.
